API Access

API Access is the administrator screen for creating read-only public API tokens for external systems.

Use it when another trusted system must read KartuStok data such as company metadata, items, warehouses, item categories, or stock reports. Typical examples are BI dashboards, data warehouse sync jobs, integration middleware, and internal monitoring tools.

What API Access Is For

API Access is designed for read-only integration.

It is suitable when an external system needs to:

• read company metadata
• read item master data
• read warehouse master data
• read item category master data
• read stock summary or stock detail report data

It is not designed for:

• creating or updating transactions
• changing master data
• managing users, roles, print templates, or email templates

If your team only needs one-time spreadsheet exchange, import/export is usually simpler than API integration.

Menu Location and Access

Open Manage -> Integrations -> API Access.

Action	Permission
View API tokens	apiAccessView
Generate token	apiAccessCreate
Revoke token	apiAccessRevoke

Token List

The list shows:

Column	Meaning
Name	Label for the integration, for example BI Dashboard or ERP Sync.
Prefix	First part of the token. Useful for identifying which token is being used later.
Scopes	Read scopes granted to the token.
Status	Active or Inactive.
Last Used	Last recorded usage time, if available.
Expires	Optional expiry date.
Revoke	Action to deactivate the token.

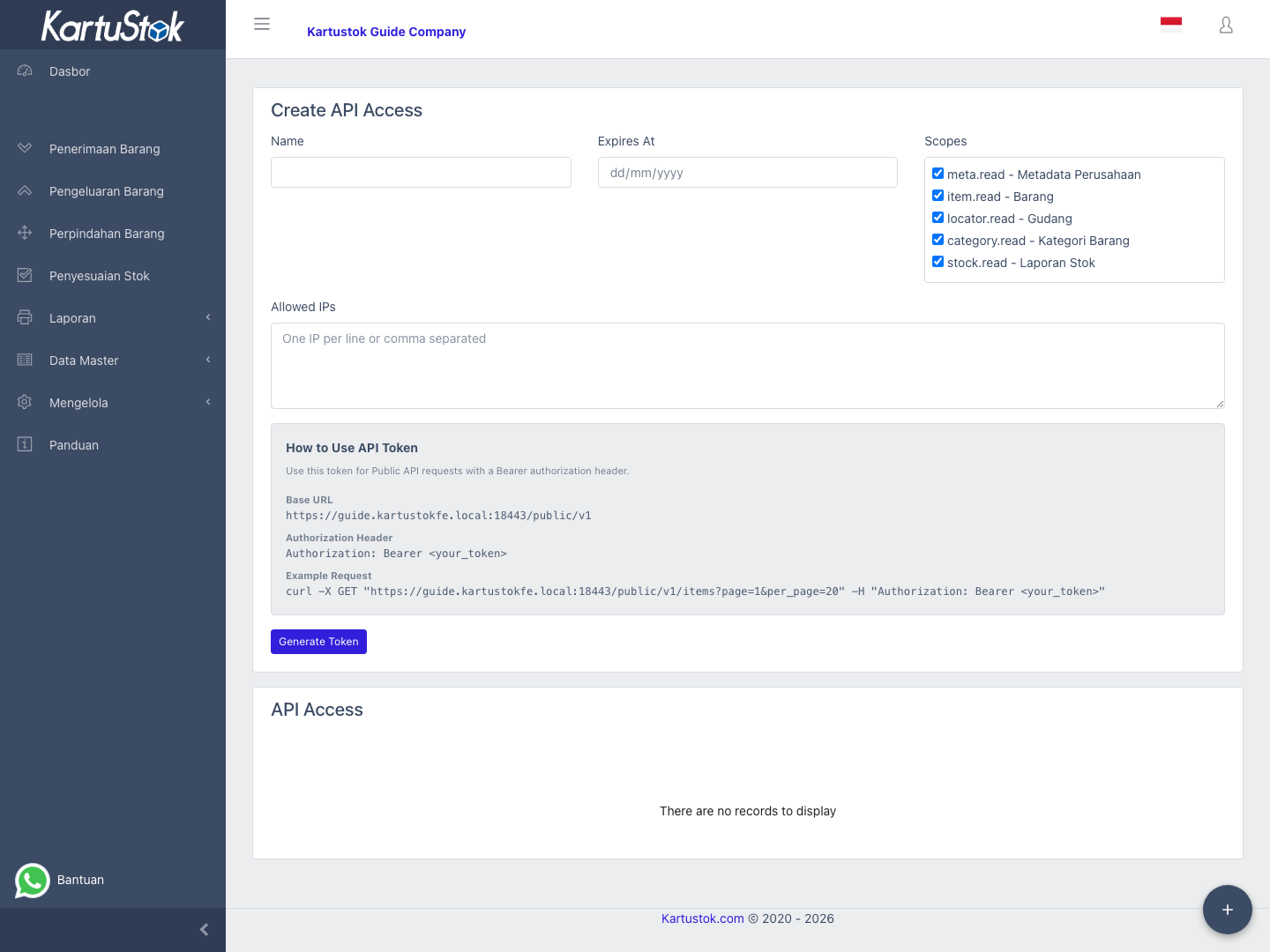

Create API Access

Field	Meaning
Name	Required integration label.
Expires At	Optional expiry date. If blank, the token has no configured expiry date.
Scopes	At least one scope must be selected.
Allowed IPs	Optional IP allowlist. Enter one IP per line or separate them with commas. CIDR notation is not supported.

Available scopes:

Scope	Data Access
meta.read	Company metadata and health check
item.read	Item list and item detail
category.read	Item category list
locator.read	Warehouse list
stock.read	Stock summary and stock detail reports

After selecting Generate Token, KartuStok shows the full token once in a Copy Token Now card.

Important: The full token is shown only once. If it is not copied and stored immediately, create a new token.

How the Integrator Uses It

The page also shows a live example based on the current company domain:

• Public API base URL
• Bearer authorization header format
• Example request to /public/v1/items

The public API always uses the company frontend domain, not the member.kartustok.com domain.

Example:

https://your-company.kartustok.com/public/v1

Admin Handoff to Integrator

Use this handoff flow when an administrator prepares access for a developer or external vendor:

1. Create a token with a clear integration name.
2. Select only the scopes that integration needs.
3. Set Expires At if the access should not be permanent.
4. Fill Allowed IPs if the integration runs from stable server IPs.
5. Copy the token immediately and store it in the destination system.
6. Ask the integrator to test health first, then meta/company, before reading items or stock.

Create one token per integration. Do not reuse the same token across unrelated systems.

Technical References for Integrators

Use these technical files when the integration team needs endpoint-level details:

• Public API Integrator Guide
• OpenAPI Specification
• Postman Collection

The technical documents explain:

• endpoint paths
• query parameters
• scope requirements
• opaque public IDs
• example requests and responses
• warehouse terminology compatibility (/locators, locator_id)
• stock report transaction types, including ItemAssembly and ItemDisassembly

Common Problems

Problem	Fix
Token disappeared after creation	This is expected. The full token is shown only once. Create a new token if it was not stored.
External system gets Unauthorized	Check the bearer token value, token status, expiry date, and that the request uses the company domain.
External system gets Forbidden	Check scope selection and Allowed IPs.
Developer uses member.kartustok.com	Public API must use the company frontend domain, for example https://your-subdomain.kartustok.com/public/v1.
Integration should no longer work	Revoke the token from the list.

Security Practice

1. Create one token for one integration.
2. Give each token the smallest scope set possible.
3. Use Allowed IPs when the integration runs from stable infrastructure.
4. Revoke tokens that are no longer used.
5. Rotate tokens when vendor ownership, server ownership, or credentials custody changes.
6. Store tokens in a secure secret manager or server-side configuration, not in browser code.
